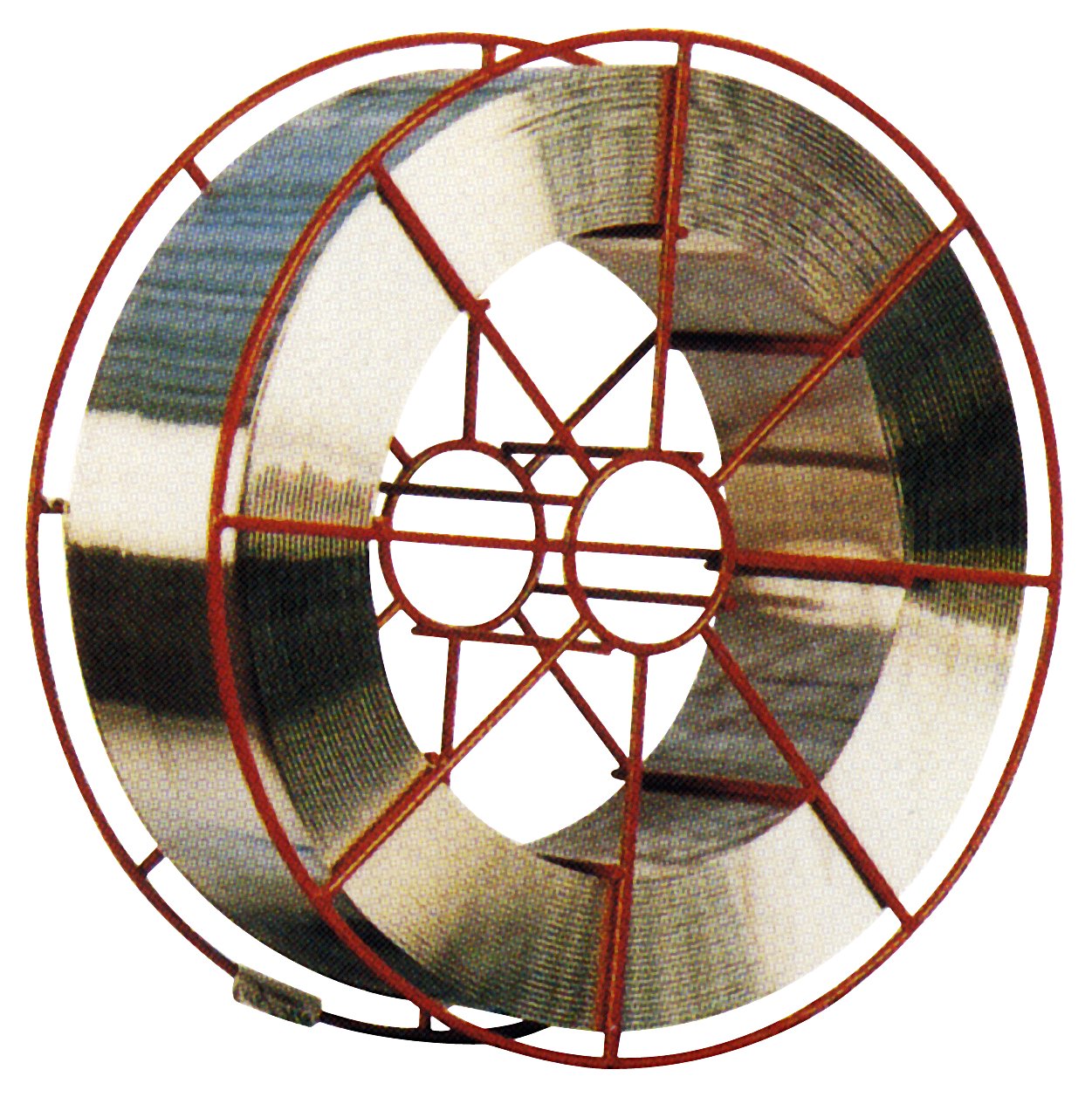

Welding wire for unalloyed and low alloy steel Luna RM 70

Electrode class: EN ISO 14341-A-G3 3 Si1 AWS A5.18: ER 70 S-6 Luna RM 70 Copper-plated, silicon manganese alloy wire electrode for MIG welding of non-alloyed and fine-grain treated steel types. RM 70 is manufactured with the greatest accuracy in modern machines that guarantee continuous high quality, which is a requirement for being able to optimise the weld process for maximum profitability. Also available in drums of 200-275 kg. Current type: DC+. Shielding gas: CO² (C1) Mixed gas (M21)

*Product Specifiactions*

• Förlängning A₅: 26 %
• ETIM class code: EC011096
• Weight per reel: 0.8 kg
• Approval: TÜV
• Welding method: MIG-MAG
• Typical values for fully welded goods: Principal analysis, % Mn: 1.45 %
• Typical values for fully welded goods: Principal analysis, % Si: 0.85 %
• Impact strength KV: 20°C 85J
• Principal analysis, %: 0.07 %
• Storage temperature, min: 5 °C
• Storage temperature, max: 15 °C
• Mechanical properties: Ultimate tensile strength R_m: 520 N/mm²
• Diameter: 0.6 mm
