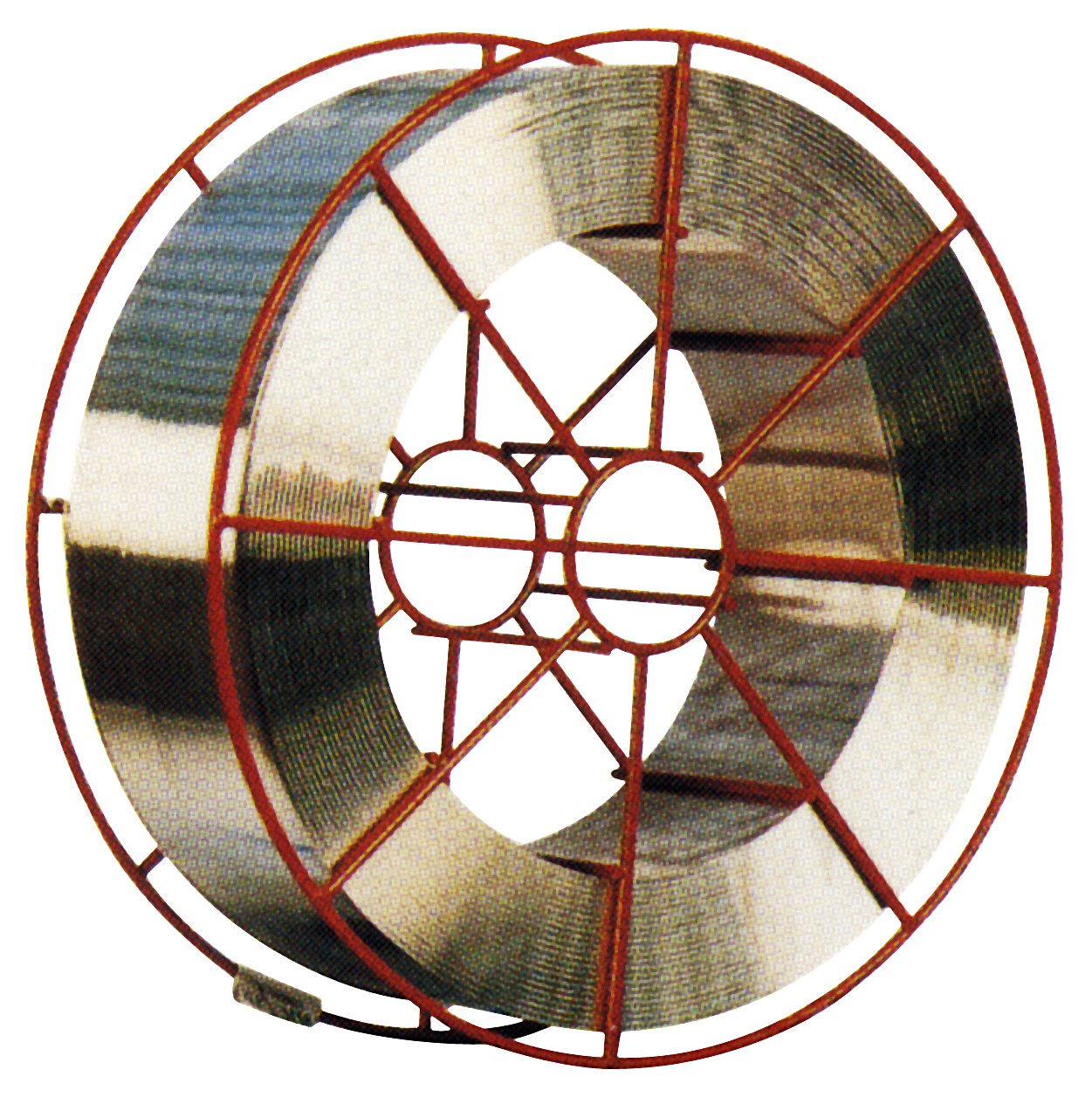

Welding wire for aluminium Luna RM AIMg5

Electrode class: EN ISO 18273 : S Al 5356 (AlMg5) AWS A5.10 ER 5356 Luna RM AIMg5. Magnesium alloy wire electrode made of aluminium for MIG welding of salt water resistant aluminium alloys containing up to 5% Mg. RM AIMg5 is the most common occurring wire electrode for welding aluminium. Melting range: 560 - 630°C. NOTE! Welding of aluminium requires joint surfaces to be cleaned carefully. Current type: DC+. Shielding gas: Argon 17-20 l/min (l1) Helium 17-20 l/min (l2) Argon/Helium 17-20 l/min (l3)

*Product Specifiactions*

• Förlängning A₅: 24 %
• ETIM class code: EC011096
• Weight per reel: 0.5 kg
• Approval: TÜV
• Welding method: MIG-MAG
• Mg: 5.0 %
• Typical values for fully welded goods: Principal analysis, % Mn: 0.13 %
• Typical values for fully welded goods: Principal analysis, % Si: 0.06 %
• Tensile yield limit Rp 0.2%:: 120 N/mm²
• Al: bal.
• Principal analysis, %: 0.12 %
• Storage temperature, min: 5 °C
• Storage temperature, max: 15 °C
• Mechanical properties: Ultimate tensile strength R_m: 255 N/mm²
• Diameter: 1.0 mm
