Welding electrodes for hard surfacing Luna RMA H30

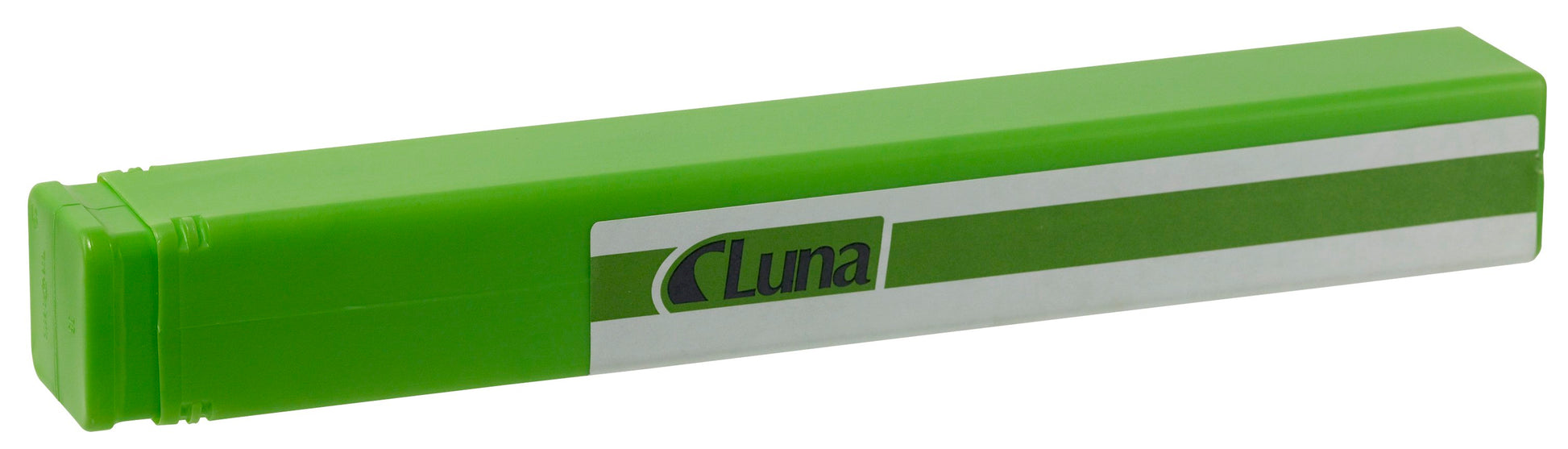

Electrode class: DIN 8555-83: E1-UM-350-GP Luna RMA H30 Rutile electrode coated hard-surfacing electrode with excellent weld properties in all welding positions, except vertical down, however the best properties are obtained in position 1G. RMA H30 produces a fracture free weld deposit with hardness 31-38HRc. Suitable for applications with moderate wear and friction in combined categories. The weld deposit can be machined and is ideal for a top layer or buffer layer. Supplied in robust plastic sleeves 1 kg/sleeve. Current type: AC/DC+.

*Product Specifiactions*

• Weight: 1.0 kg
• ETIM class code: EC011097
• Welding current: 90-130 A
• Principal analysis, Cr: 1.5 %
• Principal analysis, Mo: 0.5 %
• Typical values for fully welded goods: Principal analysis, % Mn: 0.8 %
• Typical values for fully welded goods: Principal analysis, % Si: 1.0 %
• Typical values for fully welded goods: Principal analysis, % Ni: 0.1 %
• Principal analysis, %: 0.02 %
• Length: 350 mm
• Storage temperature, min: 5 °C
• Storage temperature, max: 15 °C
• Diameter: 3.2 mm
• Coating type: Rutile basic
