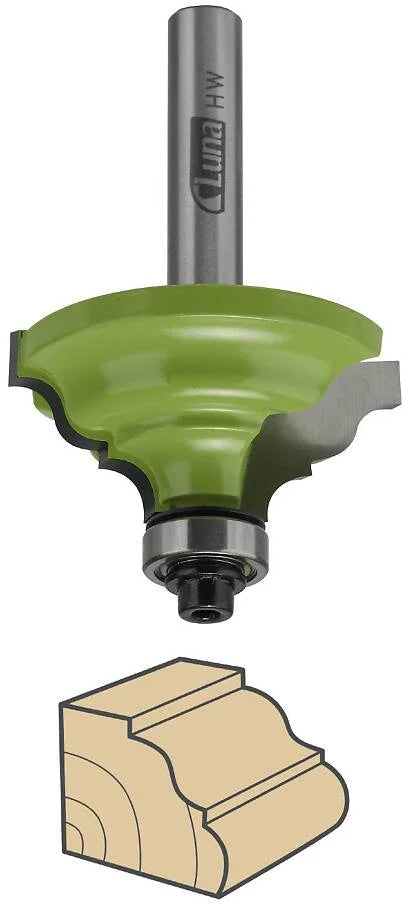

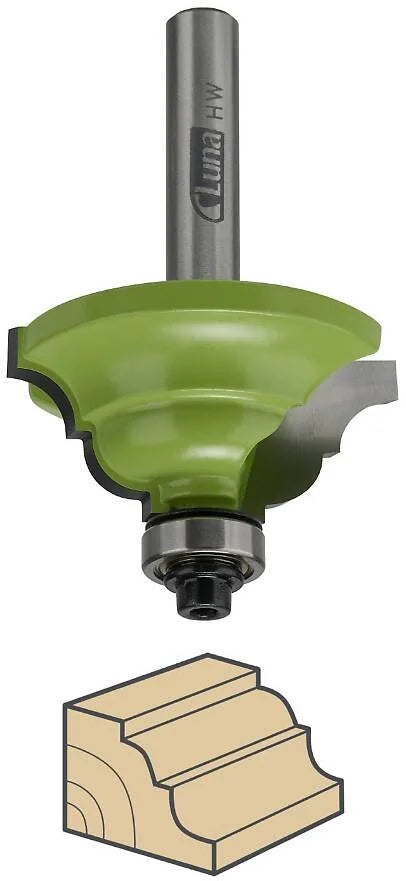

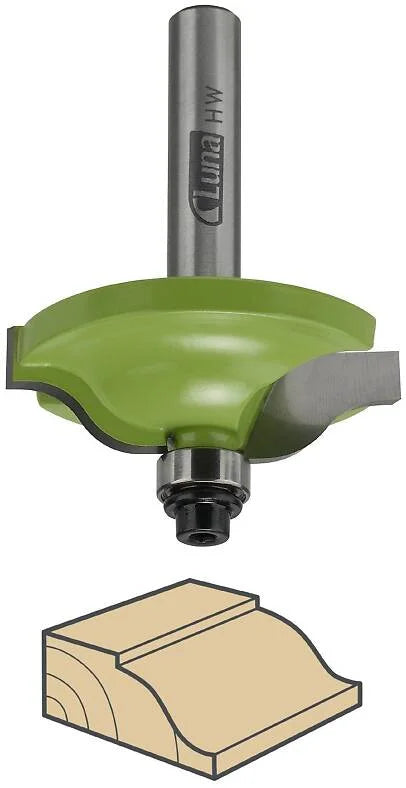

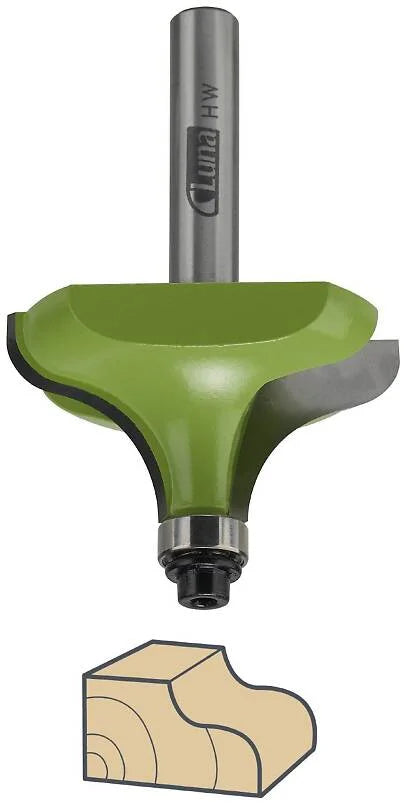

Profile bits for wood Luna

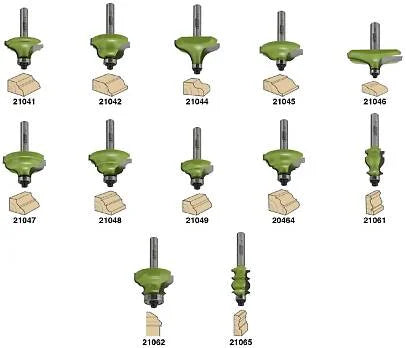

Profile bits with tungsten carbide cutter, 2104121065 series with bottom mounted bearing. Different profiles can be achieved using smaller bearing in the 2104721049 series, see the image and table for alternative bearings.

*Product Specifiactions*

MOULDING CUTTER HM 38

• ETIM class code: EC011860
• Shank diameter: 8 mm
• Ball bearings: 19×5 mm
• Miller shape: Profile bits
• Cutting width/cutting height: 21.0 mm
• No. of flutes: 2.0 qty
• Diameter: 38 mm
• Total length: 59 mm

MOULDING CUTTER HM 42

• Alternative ball bearings: 10×5 mm
• ETIM class code: EC011860
• Radius: 6.4 mm
• Shank diameter: 8 mm
• Ball bearings: 13×5 mm
• Miller shape: Profile bits
• Cutting width/cutting height: 19.5 mm
• No. of flutes: 2.0 qty
• Diameter: 42 mm
• Total length: 57 mm

MOULDING CUTTER 35,2MM

• Alternative ball bearings: 10×5 mm
• ETIM class code: EC011860
• Radius: 4.8 mm
• Shank diameter: 8 mm
• Ball bearings: 13×5 mm
• Miller shape: Profile bits
• Cutting width/cutting height: 15.0 mm
• No. of flutes: 2.0 qty
• Diameter: 35 mm
• Total length: 53 mm

MOULDING CUTTER 42MM

• ETIM class code: EC011860
• Radius: 8.0 mm
• Shank diameter: 8 mm
• Ball bearings: 10×5 mm
• Miller shape: Profile bits
• Cutting width/cutting height: 12.5 mm
• No. of flutes: 2.0 qty
• Diameter: 42 mm
• Total length: 50 mm

MOULDING CUTTER HM 44/8

• ETIM class code: EC011860
• Radius: [7.0, 14.0] MM
• Shank diameter: 8 mm
• Ball bearings: 10×5 mm
• Miller shape: Profile bits
• Cutting width/cutting height: 22.0 mm
• No. of flutes: 2.0 qty
• Diameter: 44 mm
• Total length: 60 mm
