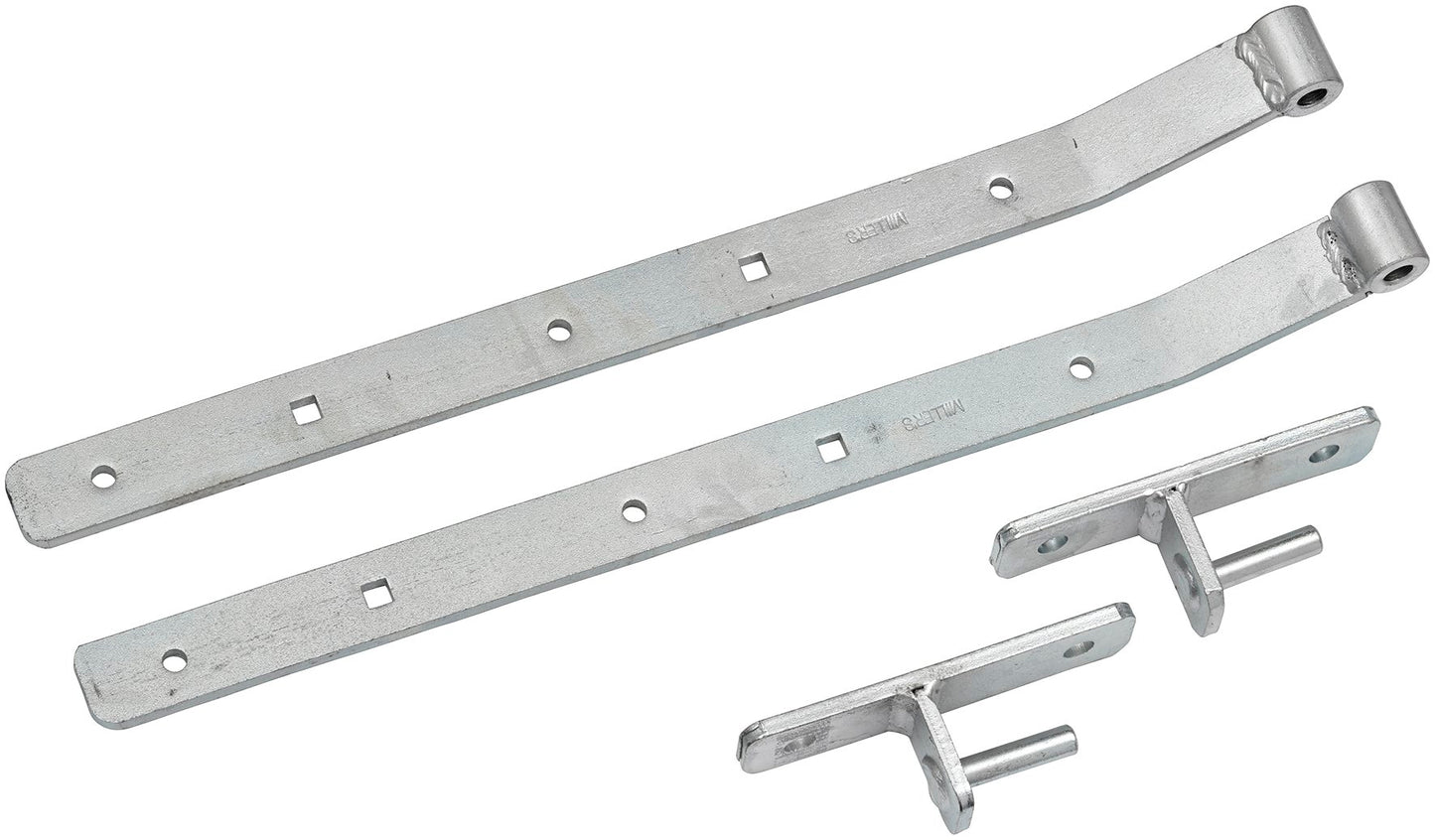

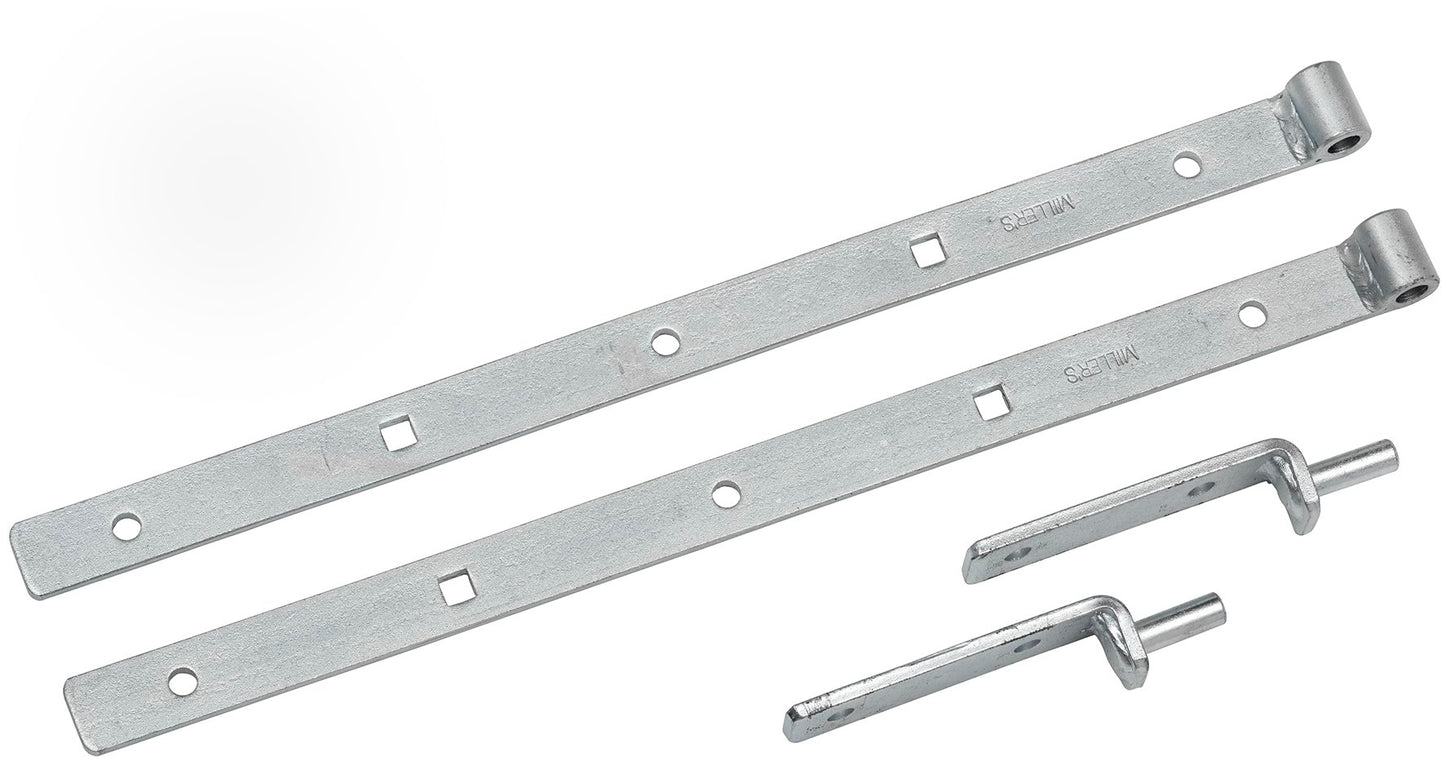

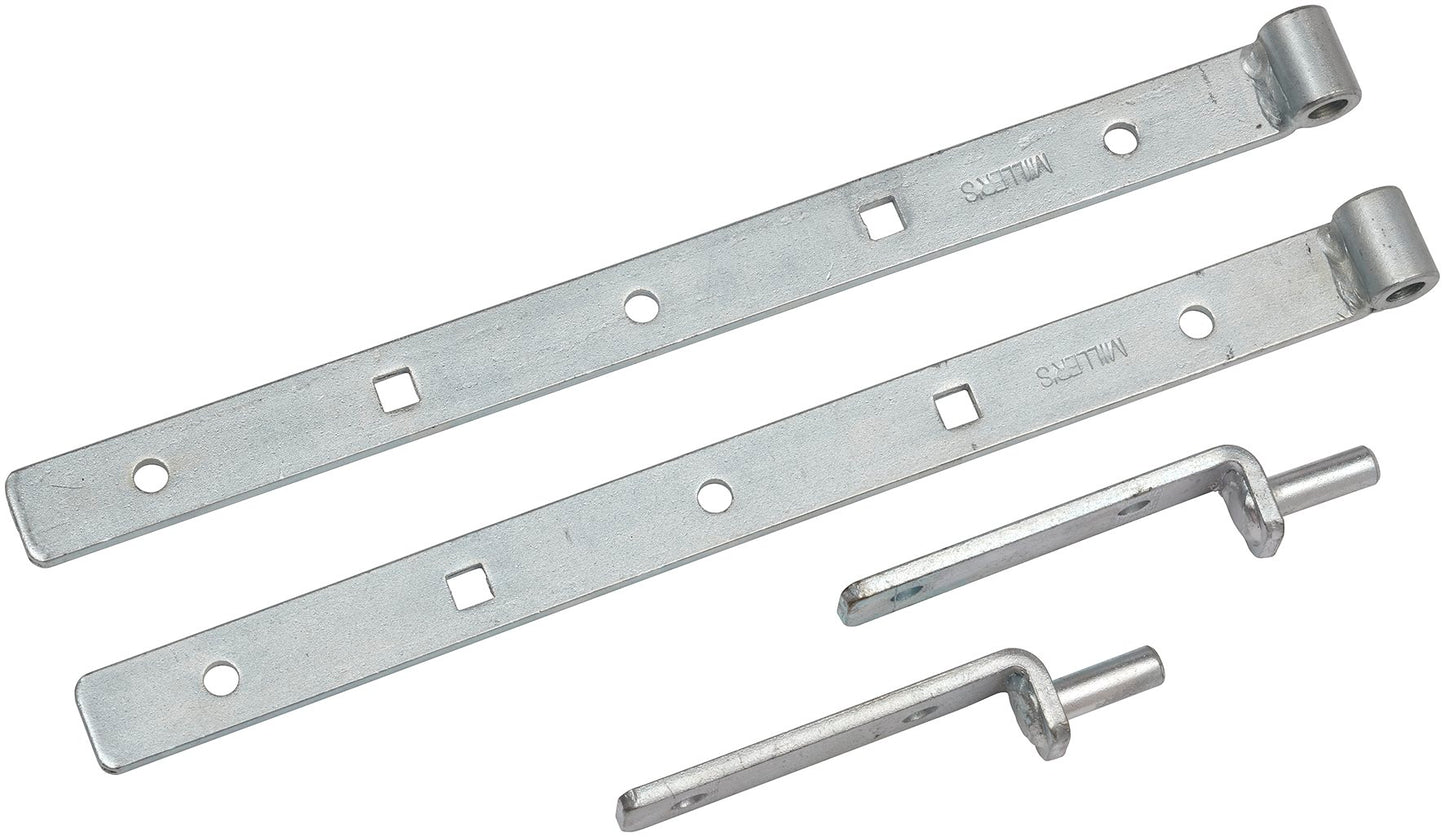

Hook hinge electro galvanized MILLERS

Steel hook hinge. Complete with hook. The hole dimension of the square holes is 11x11 MM and +/- 0.2. The round holes have a hole diameter of 10 MM +/- 0.2. Recommended length of hook hinge: Blade should cover at least 60% of the width of the door, gate, hatch, etc.

*Product Specifiactions*

HOOK HINGE EL GALV 750X40X8MM

• ETIM class code: EC004600
• Height: 40 mm
• Thickness: 8 mm
• Surface treatment: Galvanized
• Main material: Steel
• Width: 750 mm
• Diameter Pin: 13,2 mm

HOOK HINGE EL GALV 600X40X8MM

• ETIM class code: EC004600
• Height: 40 mm
• Thickness: 8 mm
• Surface treatment: Galvanized
• Main material: Steel
• Width: 600 mm
• Diameter Pin: 13,2 mm

HOOK HINGE EL GALV 500X30X6MM

• ETIM class code: EC004600
• Height: 30 mm
• Thickness: 6 mm
• Surface treatment: Galvanized
• Main material: Steel
• Width: 500 mm
• Diameter Pin: 12 mm

HOOK HINGE EL GALV 400X30X6MM

• ETIM class code: EC004600
• Height: 30 mm
• Thickness: 6 mm
• Surface treatment: Galvanized
• Main material: Steel
• Width: 400 mm
• Diameter Pin: 12 mm

HOOK HINGE EL GALV 300X30X6MM

• ETIM class code: EC004600
• Height: 30 mm
• Thickness: 6 mm
• Surface treatment: Galvanized
• Main material: Steel
• Width: 300 mm
• Diameter Pin: 12 mm
