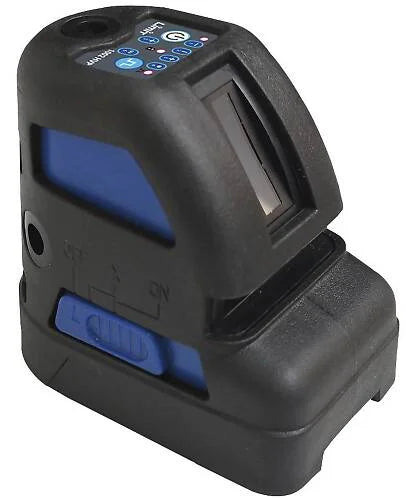

Cross dot laser Limit 1002 HVP

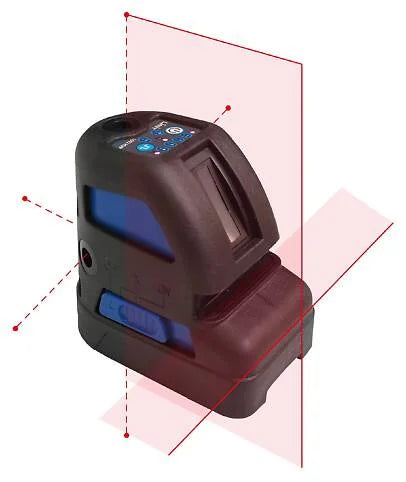

Combined cross laser and dot laser. Very bright and sharp laser lines. One horizontal line and one vertical line and 5 dots. The vertical line runs 115 degrees up to the ceiling. Self-levelling with magnetic damping compensator. Warns with flashing laser and audio when the laser does not manage to level. The lines and dots can be lit individually or together. The main power switch provides mechanical locking of the pendulum thus act as transit protection.Can be used outdoors or in bright rooms with a separate laser detector (not included).2 laser diodes class 15 mw, 635 nm for lines and 1 x 10 mw 635 nm for dots.Supplied together with mount for tripod/wall mounting, reflective target plate, soft case and batteries.

*Product Specifiactions*

• Depth: 110.0 mm
• Weight: 500.0 g
• Battery type: Alkaline
• ETIM class code: EC000641
• Operating time: 7 h
• Threaded mount: [1/4, 5/8] TUM
• Battery: AA 1.5 (3 x AA) V
• Manufacturer´s description: 1002 HVP
• No. of batteries: 3.0 qty
• Levelling range: ± 3 °
• Height: 120 mm
• Line accuracy: ±3 mm/10 m mm
• Dot accuracy: ±4 mm/10 m mm
• Max. working temperature: 45 °C
• Work temperature, min: -10 °C
• Inaccuracy, vertical, points: ±4 mm/10 m
• Inaccuracy, horizontal, points: ±4 mm/10 m
• Inaccuracy, line: ±3 mm/10 m
• Laser type: Cross line laser
• Dimensions: 120x110x65 mm
• Width: 65 mm
• Enclosure class IP: IP54
